| Item |
Description |
| System |
 |
CPU : 8-Bit Micro Controller, 22Mhz |
|
Memory
- 64Kbytes Flash (Program Memory)
- 32KBytes SRAM (Data Memory) |
|
Watchdog (on/off selected by jumper) |
|
| Network Interface |
10/100 Base-T Ethernet Interface (IEEE 802.3)
Auto detection |
| Network Protocol |
TCP/UDP/IP/ICMP/ARP, IEEE802.3(Standard Ethernet) |
| Serial Interface |
|
Speed : 1200 ~ 115200 bps |
|
Data bit : 7, 8bit |
|
Parity : None, odd, even |
|
Stop bit : 1. 2/3, 2 bit |
|
Serial mode : RS232, RS422, RS485 (selected by piano switch) |
|
| Indicators |
|
10M(Green) : Blinking when data are transmitted to 10M Ethernet |
|
100M(Green) : Blinking when data are transmitted to 100M Ethernet |
|
COL(Yellow) : On when collision happens |
|
TCP(Orange) : On when TCP connection is established |
|
| Utility Software |
NetEye Setup Program (Windows XP/2000/7)
NetEye Search, IP Setup, Built-In on Network.
Simulator:Test Result Display Demo Program |
| Environment |
|
Input Current : max 200mA |
|
Input Power : DC7V (S1000ED), AC100~240V(S1000EA) |
|
Humidity : 0 ~ 95% |
|
Operating Temperature : 0 ~ 50 °C |
|
Storage Temperature : -20 ~ 70 °C |
|
| Dimension |
|
S1000ED : 100(W)x56(D)x27(H)mm |
|
S1000EA : 109x141x38mm |
|
| Ordering Information |

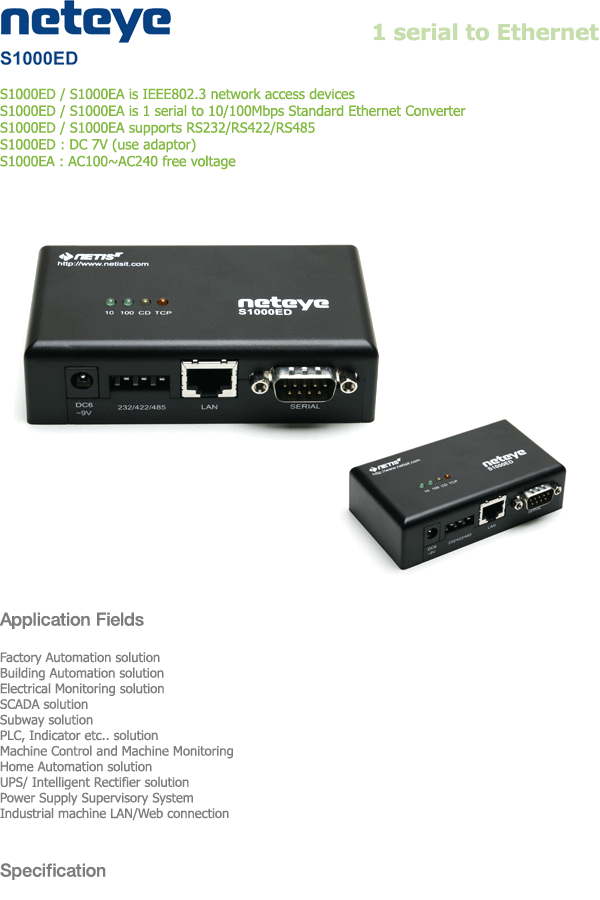

S1000ED : 1 serial to Ethernet Converter (RS232/422/485, DC7V)
S1000EA : 1 serial to Ethernet Converter (RS232/422/485, AC100V~AC240V, 50/60Hz) |
| etc |
|
