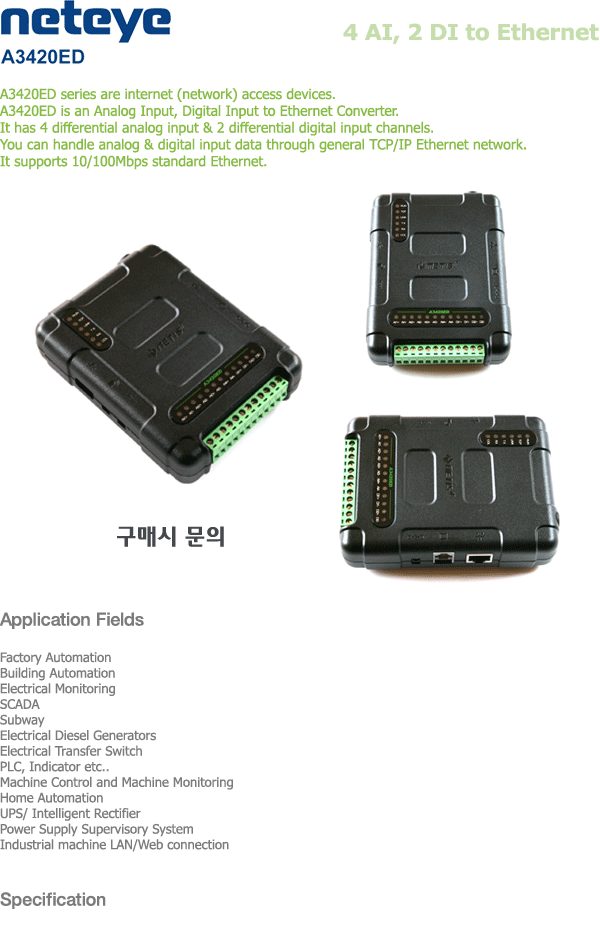

Analogl Server
Item
Description
System
CPU : 8-Bit Micro Controller, 22Mhz
Memory
- 64Kbytes Code Memory
- 64Kbytes Data Memory
Network Interface
10 / 100 Base-T Ethernet Interface (IEEE 802.3)
Network Protocol
TCP/UDP/IP/ICMP/ARP, IEEE802.3(Standard Ethernet)
Device ability
TCP Server
Analog Input
Interface
Effective resolution : 12-bit
Channel : 4 Differential
Input Type : 0~20mA , 0~5V
Accuracy : ±2% or better
Sampling Rate : 10 sample/sec (about total channel)
Input impedance : 20M ohm
Digital Input
Interface
Isolated Digital(pulse) Input 2 Channel (-50 ~ 50VDC)
Sink current 200mA Max
Isolation Voltage: 2500Vrms
Input resistance : 2.4k @ 0.5w (for digital Input/ pulse Input)
Indicators
RUN(Red) : Blink when system status is good
TCP(Orange) : It lights on when TCP Socket connect
LINK(Green) : It lights on when connected LAN cable
TX(Green) : It lights on when Data Transmisson
RX(Yellow) : It lights on when Data Received
STS(Yellow) : System status
DI1(Green) : It lights on when Received High Level Signal at Digital Input Port 1
DI2(Green) : It lights on when Received High Level Signal at Digital Input Port 2
Utility Software
NetEyeA3420ED Setup Program (Windows 98/ME/NT/2000/XT)
NetEyeA3420ED Search, IP Setup, Built-In on Network
Simulator:Test Result Display Demo Program
Environment
Input Current : max 400mA
Input Power : DC5V
Humidity : 0 ~ 95%
Operating Temperature : 0 ~ 50 °C
Storage Temperature : -20 ~ 70 °C
Dimension
98mm(W) * 130mm(H) * 33mm(D)
