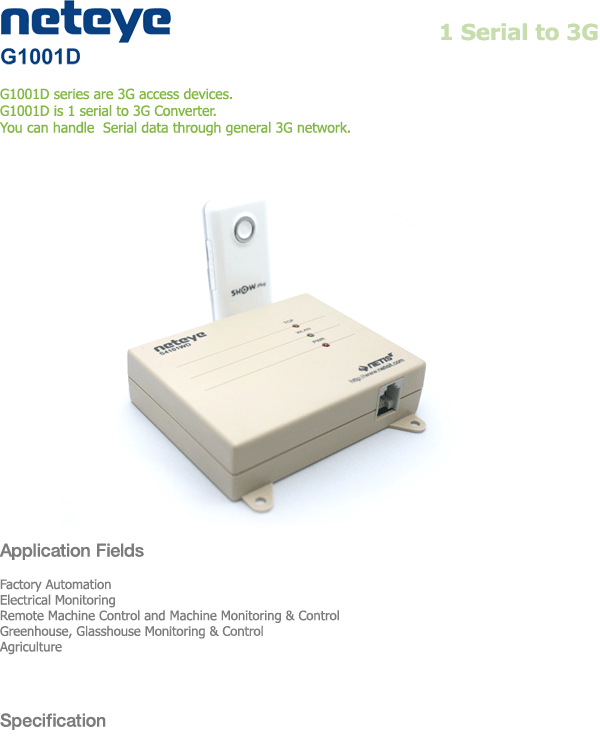

원격 DAQ(3G)
>
원격 DAQ(3G)
Item
Description
CPU
32-bit, 250MHz
Serial Interface
1 Serial Port (RS232 )
Speed : 2400 ~ 115200bps
Data bit : 7,8 bit
Parity : none, odd, even
stop bit : 1, 2 stop bit
Network Protocol
TCP/UDP/IP/ICMP/ARP/BOOTP/TFTP
Device ability
TCP Server/Client, DHCP, SMTP client
3G Interface
connection type ; USB type A
supported 3G(USB) Modem
. SPH-H1300(samsung)
. LM-700WU(LG inotek)
. EV-HM100(KT Ever)
. CHU-629K(C-motech)
. CWE-624K(C-motech)
. L-02A(LG)
. W220(SDC)
Indicator
PWR(Red) : It lights on when Power is On
WLS(Green) : Indicating 3G status
TRX(Orange) : It light on when transmit & receive serial data
Utility Software
NetEye Setup Program (Windows XP/2000/7)
NetEye Search, IP Setup, Built-In on Network.
Simulator:Test Result Display Demo Program
Environment
Input Current : max 700mA
Input Voltage : DC5V
Humidity : 0 ~ 95%
Operating Temperature : 0 ~ 50 °C
Storage Temperature : -20 ~ 70 °C
Dimension
93(W)x88(D)x25(H)mm
Ordering Information
1 serial to 3G Converter
etc
