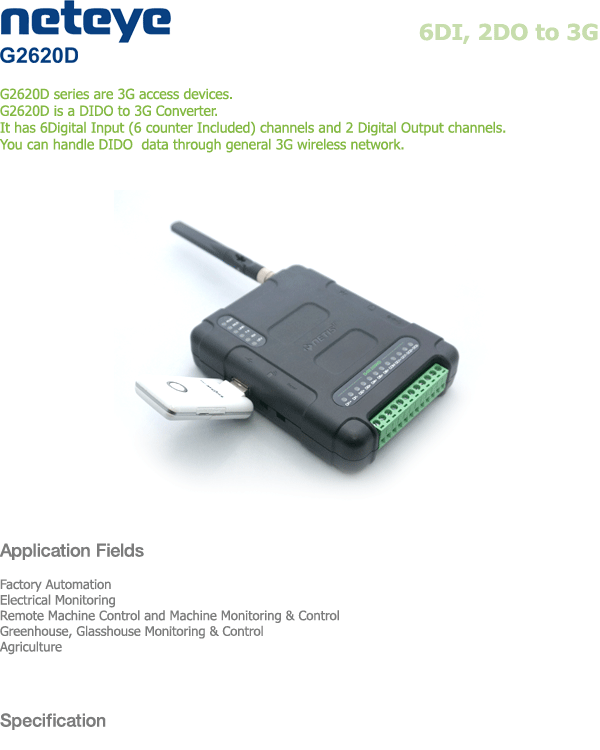

| Item |
Description |
| CPU |
8-Bit Micro Controller, 88.4736Mhz |
| Memory |
64Kbytes Code Memory
64Kbytes Data Memory |
| Network Interface |
Wired Interface
100 Base-T Ethernet Interface (IEEE 802.3) |
| Network Protocol |
TCP/UDP/IP/ICMP/ARP/
IEEE802.3(Standard Ethernet) |
| 3G Interface |
 |
connection type ; USB type A |
|
supported 3G(USB) Modem |
|
. SPH-H1300(samsung)
. LM-700WU(LG inotek)
. EV-HM100(KT Ever)
. CHU-629K(C-motech)
. CWE-624K(C-motech)
. L-02A(LG)
. W220(SDC) |
|
Digital Input
Interface |
|
Isolated Digital(pulse) Input 6 Channel (-50 ~ 50VDC) |
|
Ch#1 ; Independent mode, Level mode only
Throughput or Highspeed mode |
|
Ch#2 ~ Ch1#6 ; Common mode, Level or Dry mode
Throughput mode only |
|
Isolation Voltage: 2500Vrms |
|
Input resistance : 2.4k @ 0.5w (for digital Input/ pulse Input) |
|
| Digital Output Interface |
Isolated Independent mode Digital Output 2 Channel.
Photo Relay. Max 600mA.
Isolation Voltage: 2500Vrms |
| Indicator |
|
RUN(Red) : Blink when system status is good. |
|
TCP(Orange) : It lights on when TCP Socket connected. |
|
LINK(Green) : It lights on when connected LAN cable. |
|
TX(Green) : It lights on when LAN Data Transmisson. |
|
RX(Yellow) : It lights on when LAN Data Received. |
|
Lev(Red) : It lights on when selected level mode. |
|
DI1~6(Green) : It lights on when received active signal DI port. |
|
DO1,2(Red) : It lights on when controlled DO port on state. |
|
| Utility Software |
Web Setup (Windows 98/ME/NT/2000/XT)
Simulator:Test result display demo program |
| Environment |
|
Input Current : max 700mA |
|
Input Voltage : DC5V |
|
Operating Temperature : 0 ~ 50 °C |
|
Storage Temperature : -20 ~ 70 °C |
|
| Dimension |
98(W)x130(D)x33(H)mm |
| Ordering Information |
Digital Input/ Digital Output to 3G device |
| etc |
|
