| Item |
Description |
| CPU |
32-Bit Micro Controller, 400MHz
Programmable device. |
| Memory |
32Mbytes Flash
32Mbytes SRAM (PC100) |
| Network Interface |
Wired Interface
100 Base-T Ethernet Interface (IEEE 802.3) |
| Network Protocol |
TCP/UDP/IP/ICMP/ARP/
IEEE802.3(Standard Ethernet) |
| 3G Interface |
 |
connection type ; USB type A |
|
supported 3G(USB) Modem |
|
. SPH-H1300(samsung)
. LM-700WU(LG inotek)
. EV-HM100(KT Ever)
. CHU-629K(C-motech)
. CWE-624K(C-motech)
. L-02A(LG)
. W220(SDC) |
|
| Serial Interface |
|
Port ; RS232 - 1 port, RS232/422/485 - 1 port |
|
Speed : 4800 ~ 115200bps |
|
Data bit : 8bit |
|
Parity : even, odd, none |
|
stop bit : 1 stop bit |
|
Digital Input
Interface |
|
Isolated Digital(pulse) Input 2 Channel (-50 ~ 50VDC) |
|
Counter ; detect 1 msec duty cycle. |
|
Isolation Voltage: 2500Vrms |
|
Input resistance : 2.4k @ 0.5w (for digital Input/ pulse Input) |
|
| Digital Output Interface |
Isolated Independent mode Digital Output 1 Channel.
Photo Relay. Max 600mA.
Isolation Voltage: 2500Vrms |
| Indicator |
|
RUN(Red) : Blink when system status is good. |
|
WLS(Yellow) : It lights on when Client can communicate with AP. |
|
LINK(Green) : It lights on when connected LAN cable. |
|
TCP(Orange) : It lights on when TCP Socket connected. |
|
DI1~2(Green) : It lights on when received active signal DI port. |
|
DO(Red) : It lights on when controlled DO port on state. |
|
| Utility Software |
Web Setup (Windows 98/ME/NT/2000/XT)
Simulator:Test result display demo program |
| Environment |
|
Input Current : max 1A |
|
Input Voltage : DC5V |
|
Operating Temperature : 0 ~ 50 °C |
|
Storage Temperature : -20 ~ 70 °C |
|
| Dimension |
98(W)x130(D)x33(H)mm |
| Ordering Information |

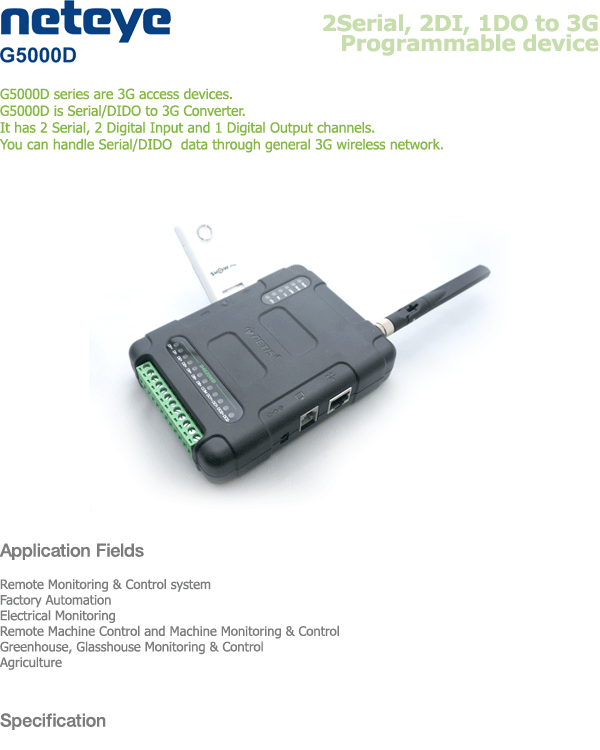

Serial / Digital Input/ Digital Output to 3G device |
